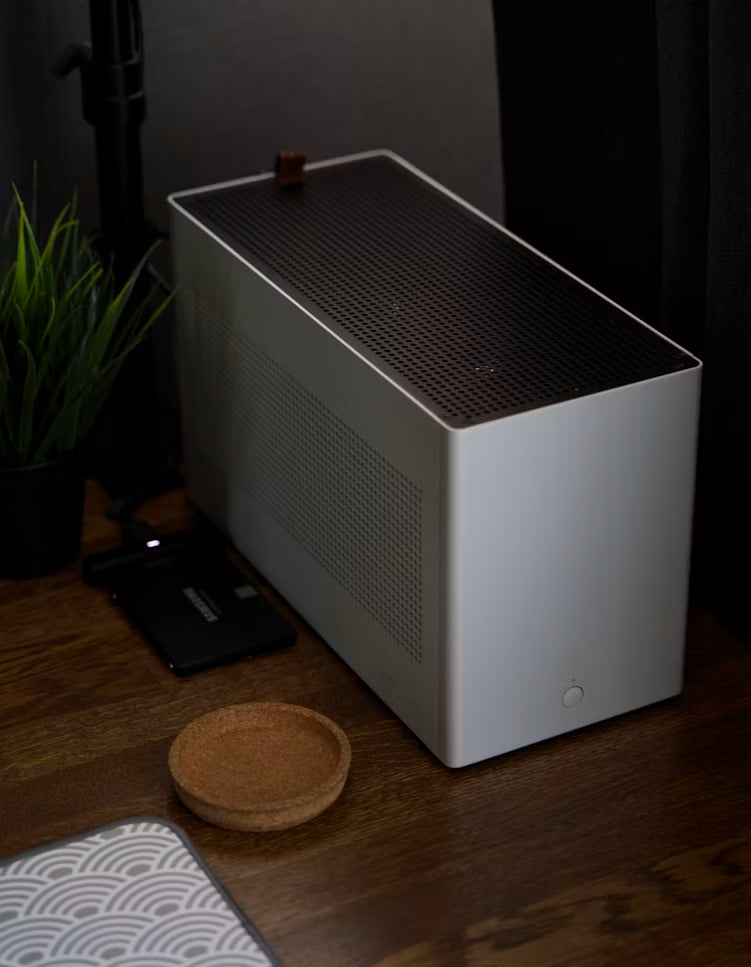

Building inside an enclosure under 15 liters is an exercise in tight-tolerance engineering. In a standard mid-tower, a margin of error of 5mm is irrelevant. In an SFF chassis, a single millimeter can be the difference between a completed build and an unusable side panel.
Before you purchase components for an ultra-compact build, ensure you haven't fallen into these common compatibility traps.
1. The SFX vs. SFX-L Form Factor Oversight
While looking for high-wattage power supplies, it’s easy to look past the "L" suffix. While standard SFX power supplies measure 100mm deep, SFX-L units extend that depth to 130mm to accommodate a larger 120mm fan.
That extra 30mm sounds negligible, but in an SFF chassis, it directly conflicts with other internal components. An SFX-L unit will frequently block the lower mounting rails for a 240mm liquid cooling radiator, or severely pinch the routing space required for your 24-pin motherboard cable, choking exhaust paths.
2. Accounting for GPU Z-Height and Power Connector Recesses
Most builders check the length of their graphics card against the case specifications. However, the width (Z-height) is often where builds fail.
flowchart TD
A[Case Wall]
B["||
Missing clearance for stiff 12VHPWR cable"]
C[GPU Power Port]
D[Graphics Card Body]
A ~~~ B
B ~~~ C
C ~~~ D
style A fill:#f5f5f5,stroke:#333,stroke-width:2px
style B fill:#ffebee,stroke:#c62828,stroke-width:2px,color:#c62828
style C fill:#f5f5f5,stroke:#333,stroke-width:2px
style D fill:#f5f5f5,stroke:#333,stroke-width:2px
Even if a GPU technically fits within the specified width of a chassis, the calculation often leaves out the space required for the PCIe power cables. Stiff, modern 12VHPWR cables or dual 8-pin connectors require at least 15mm–20mm of clearance to bend safely away from the side panel. Forcing the panel shut can strain the connectors, risking hardware damage.
3. Motherboard Heatsink Protrusions
Modern Mini-ITX motherboards are heavily armored. In an effort to keep VRMs and high-speed NVMe drives cool, manufacturers stack massive, tiered aluminum heatsinks around the CPU socket.
These aggressive heatsinks frequently interfere with the mounting brackets or copper heat pipes of top-tier low-profile air coolers. Furthermore, if your chosen chassis utilizes a dense central spine, thick rear-mounted M.2 heatsinks or backplates can cause the motherboard to sit unevenly, throwing off the alignment of your rear I/O and PCIe slots.
4. The Fallacy of Rigid, Standard Power Cables
The stock cables included with most power supplies are thick, insulated, and stiff. In a standard case, excess cable length is easily hidden beneath a PSU shroud. In an SFF enclosure, there is no shroud.
Attempting to route rigid, standard-length cables through an 11-liter space creates massive restrictions. They block critical exhaust paths, push against fan blades, and bulge out side panels. Upgrading to ultra-flexible, custom-length silicone or unsleeved cables is rarely just an aesthetic choice—it is a functional requirement to maintain structural and thermal integrity.
5. Overestimating AIO Tube Flexibility
Selecting a 240mm All-In-One (AIO) liquid cooler based purely on radiator size is a common pitfall. The real bottleneck is often tube length and reinforcement.
Many high-end AIOs feature stiff, sleeved tubing designed to stretch across massive mid-towers. Inside an SFF chassis, that tubing must be coiled tightly without kinking. If the tubes are too rigid, they will exert immense pressure on the pump block, strain the motherboard PCB, or push directly into the spinning blades of your top exhaust fans. Always look for coolers known for high-flexibility rubber tubing and rotatable 90-degree block fittings.
