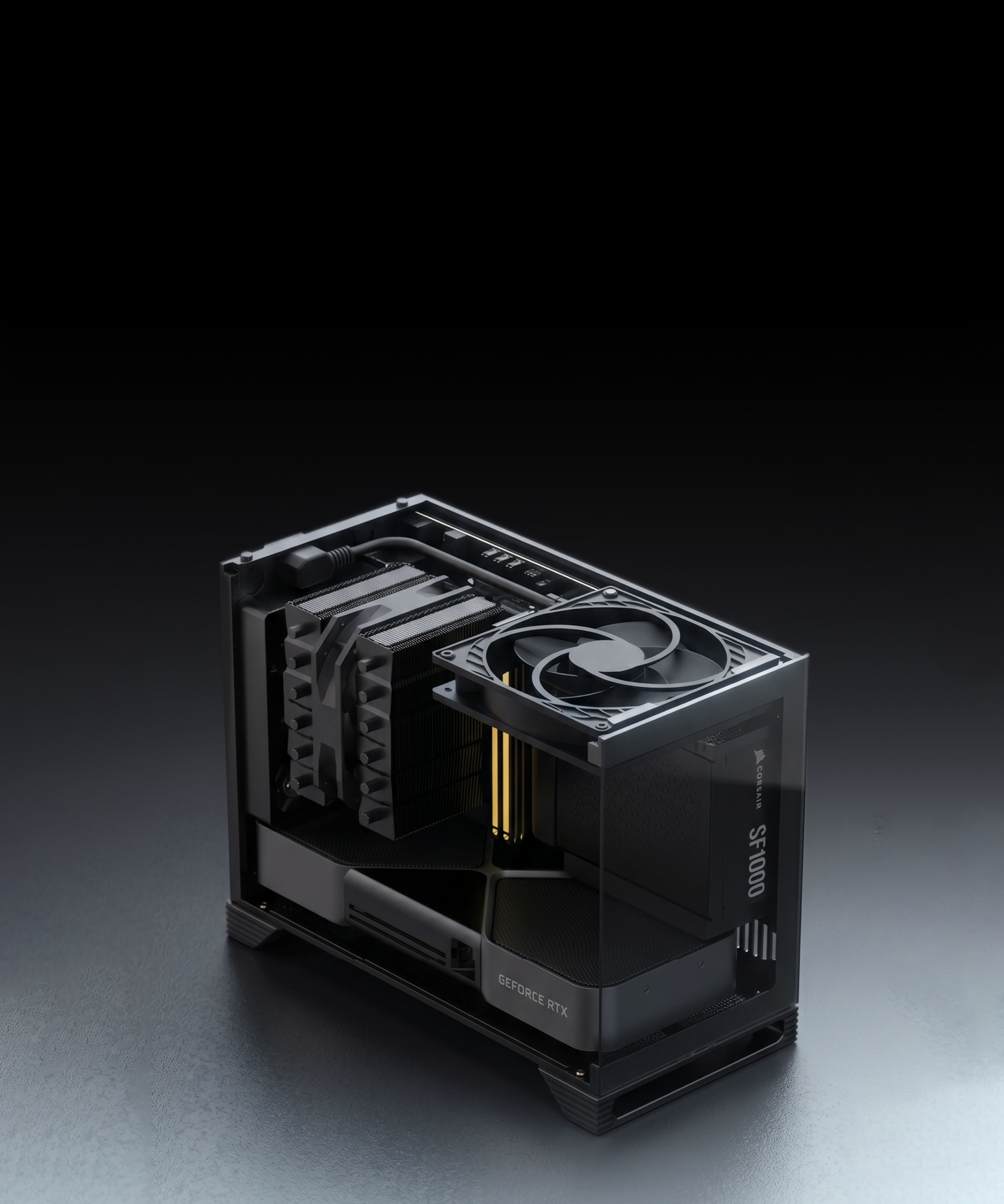

Transitioning to a Small Form Factor setup requires a shift in how you evaluate hardware. In the ATX world, compatibility is rarely a question. In the Mini-ITX realm, every millimeter is a design choice. The foundation of any compact build is its internal layout paradigm.

Choosing a layout isn't about aesthetics; it dictates your component clearances, thermal limits, and ultimate desktop footprint. Let’s break down the three dominant structural blueprints in SFF engineering today.

1. The Sandwich (Dual-Chamber) Layout

The sandwich layout utilizes a central spine to split the enclosure into two distinct chambers. The motherboard and power supply sit on one side, while the graphics card is mounted vertically on the reverse side, connected via a high-bandwidth PCIe riser cable.


graph TD
    %% Component Layers
    subgraph Core ["Core Components"]
        MB[Mini-ITX Motherboard]
        CPU[CPU & Cooler]
        RAM[RAM]
        GPU[Graphics Card / GPU]
        SFX[SFX / SFX-L Power Supply]
    end

    subgraph Thermal ["Thermal & Space Constraints"]
        Vol[Chassis Volume: < 20L]
        Clear[Clearance: GPU Length & CPU Height]
        Flow[Airflow / Liquid Cooling Exhaust]
    end

    %% Connections and Dependencies
    MB --> CPU
    MB --> RAM
    MB --> GPU
    SFX -->|Modular Cables| MB
    SFX -->|Dedicated PCIe Power| GPU

    %% Constraints Mapping
    Vol -->|Dictates| Clear
    Clear -->|Limits| GPU
    Clear -->|Limits| CPU
    CPU -->|Generates Heat| Flow
    GPU -->|Generates Heat| Flow

    %% Styling
    style Core fill:#1a1a1a,stroke:#333,stroke-width:2px,color:#fff
    style Thermal fill:#0d233a,stroke:#1d4ed8,stroke-width:2px,color:#fff
    style MB fill:#2e7d32,stroke:#1b5e20,color:#fff
    style GPU fill:#b71c1c,stroke:#880e4f,color:#fff
    style SFX fill:#e65100,stroke:#ff6d00,color:#fff

  • The Advantage: Maximum GPU compatibility. Because the graphics card occupies its own dedicated chamber, these cases can frequently accommodate massive 3-slot or 3.5-slot flagship GPUs. Both major heat sources draw fresh air directly from opposite sides of the case.

  • The Constraint: CPU cooling is highly restricted. The spine location typically limits CPU air cooler clearance to under 55mm–70mm, often requiring a commitment to liquid cooling via a top-mounted 240mm AIO radiator.

  • 2. The Classic (Direct-Plug) Layout

    The classic layout scales down the traditional ATX blueprint. The motherboard sits flat against the side panel, and the GPU plugs directly into the PCIe slot horizontally, without the need for a riser cable.

    • The Advantage: Generous CPU clearance. Without a GPU partitioned directly behind it, this layout allows for substantial tower air coolers (often up to 130mm–155mm). It is highly reliable, removes the potential failure point of a riser cable, and is excellent for CPU-heavy rendering or compilation workloads.

    • The Constraint: GPU thickness and overall case width. To accommodate thick graphics cards and tall CPU coolers simultaneously, classic layouts must be wider, increasing the overall desktop footprint and pushing the volume closer to the 15-liter limit.

    3. The Console (Flat / Vertical) Layout

    Inspired by home entertainment hardware, the console layout places all components flat on a single plane. It is essentially a sandwich layout laid flat, or oriented vertically using a dedicated stand to occupy minimal desk surface area.

    • The Advantage: Ultra-shallow depth or vertical space optimization. When oriented vertically, it provides the absolute smallest desk footprint possible, making it perfect for minimalist workstations or media consoles.

    • The Constraint: Severe height restrictions. CPU air coolers are generally limited to ultra-low-profile options (sub-50mm), and power supplies are strictly limited to SFX form factors, requiring precise cable management to avoid obstructing internal airflow.

    Layout Clearance Matrix

    graph TD
        %% Core Theme of SFF
        SFF[Speculative Fiction] --> SF[Science Fiction]
        SFF --> F[Fantasy]

        %% Science Fiction Branches
        SF --> HardSF[Hard SF]
        SF --> SoftSF[Soft / Social SF]
        SF --> Cyberpunk[Cyberpunk & Dystopian]
        SF --> SpaceOpera[Space Opera]

        %% Fantasy Branches
        F --> HighFantasy[High / Epic Fantasy]
        F --> LowFantasy[Low / Urban Fantasy]
        F --> Grimdark[Grimdark Fantasy]
        F --> MagicalRealism[Magical Realism]

        %% Examples/Characteristics
        HardSF --> |Focus on Scientific Accuracy| Ex1[e.g., The Martian]
        SpaceOpera --> |Large-scale Space Warfare/Drama| Ex2[e.g., Dune, Star Wars]
        HighFantasy --> |Entirely Fictional World & Magic Systems| Ex3[e.g., Lord of the Rings]
        UrbanFantasy --> |Magic in a Real-World, Modern Setting| Ex4[e.g., The Dresden Files]

        %% Overlap Zone
        SF -.-> ScienceFantasy[Science Fantasy
    e.g., Star Wars] F -.-> ScienceFantasy style SFF fill:#f9f,stroke:#333,stroke-width:4px style SF fill:#bbf,stroke:#333,stroke-width:2px style F fill:#fbf,stroke:#333,stroke-width:2px
    Layout Paradigm Max GPU Clearance CPU Cooler Height Limit Optimal Deployment
    Sandwich Up to 3.5-Slot (Vertical) Restricted (<65mm Air / 240mm AIO) High-end gaming, deep desks
    Classic Limited to 2-2.5-Slot Generous (Up to 155mm Air) CPU-intensive dev, high-reliability
    Console Long but Slim (2-Slot) Ultra-Restricted (<50mm) Minimalist desks, media centers
